double girder 32t lifting overhead bridge crane
Product Description
double girder 32t lifting overhead bridge crane is composed of box type bridge frame,lifting trolley, crane traveling mechanism, and electrical system. All mechanism are controlled in driver's cabin. Power supply adopts cable festoon and sliding wire, select one when ordering. It is a heavy duty type overhead crane that satisfy frequently using. According to the different utilization class and load state, it is divided into A5 and A6 working classes.
Application
double girder 32t lifting overhead bridge crane is applied in open warehouse or rail sideways to conduct common loading unloading and material handling works.
Features and Advantages
1. It is a heavy duty type overhead crane that satisfy frequently using, and Suitable for any environment ( High Temperature, Explosion Proof and so on);
2. It has features of Heavy duty, high efficiency, Long life span, easy for Installation and maintenance.
3. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook.
Safety Device
1. Top quality longtime bearing polyurethane materials buffer
2. Lifting limit switch and traveling limit switch
3. Current overload protection system
4. Voltage lower protection function
5. Emergency stop system
6. Zero voltage protection
7. Weight overload limiter
Technical Data Sheet
| | QD Type Double-beam Hook Bridge Crane |
| | |
| | |
| | |
| | |
| | |
| | 380V 50Hz 3Ph or custom made |
Schematic drawing
Attention!!!
When ordering, the technical requirements such as the highest and lowest temperature of the working environment and the type of power supply should be indicated. The overload limiter, large screen display and various protection devices are added to further increase the safety during use.
Inquiry notice ! ! !
If you want to inquire about our overhead crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?

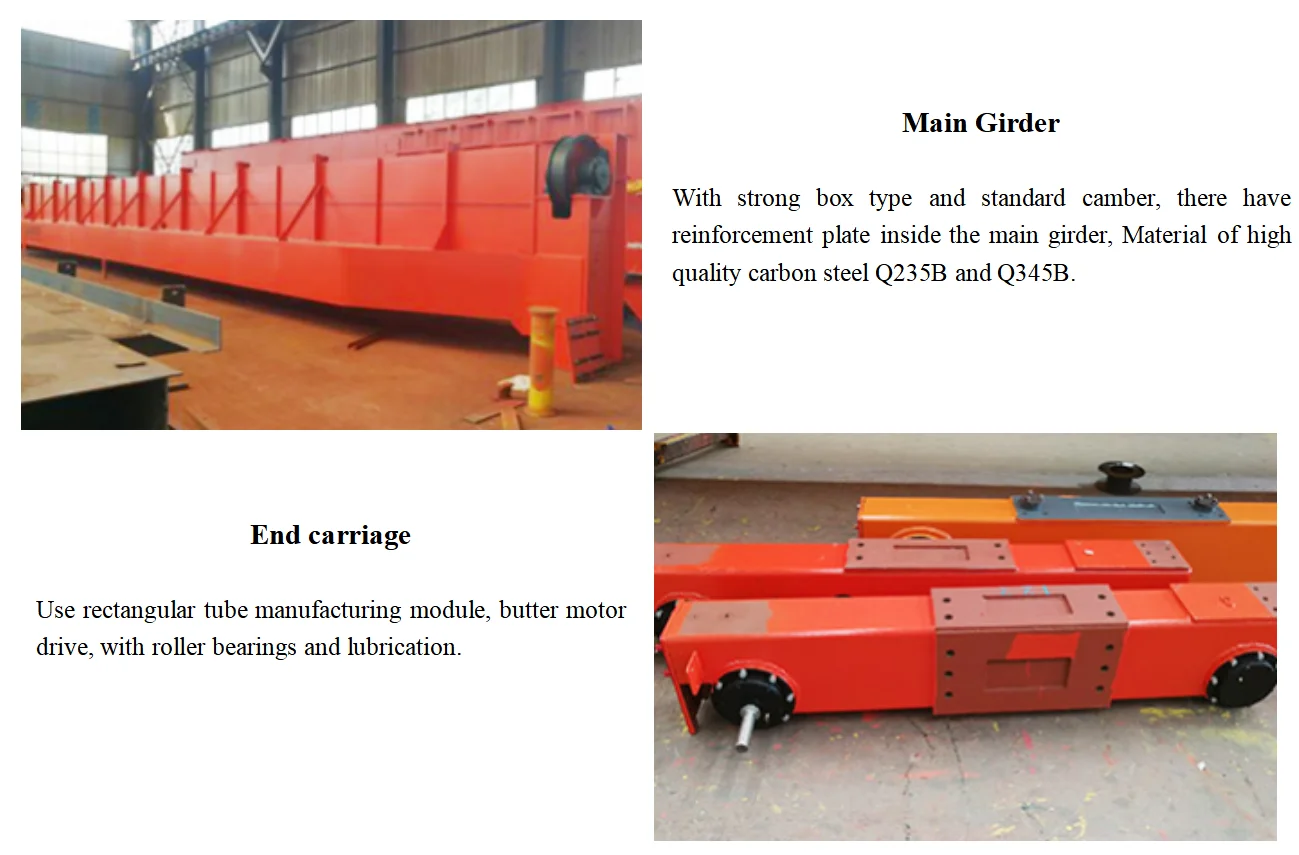

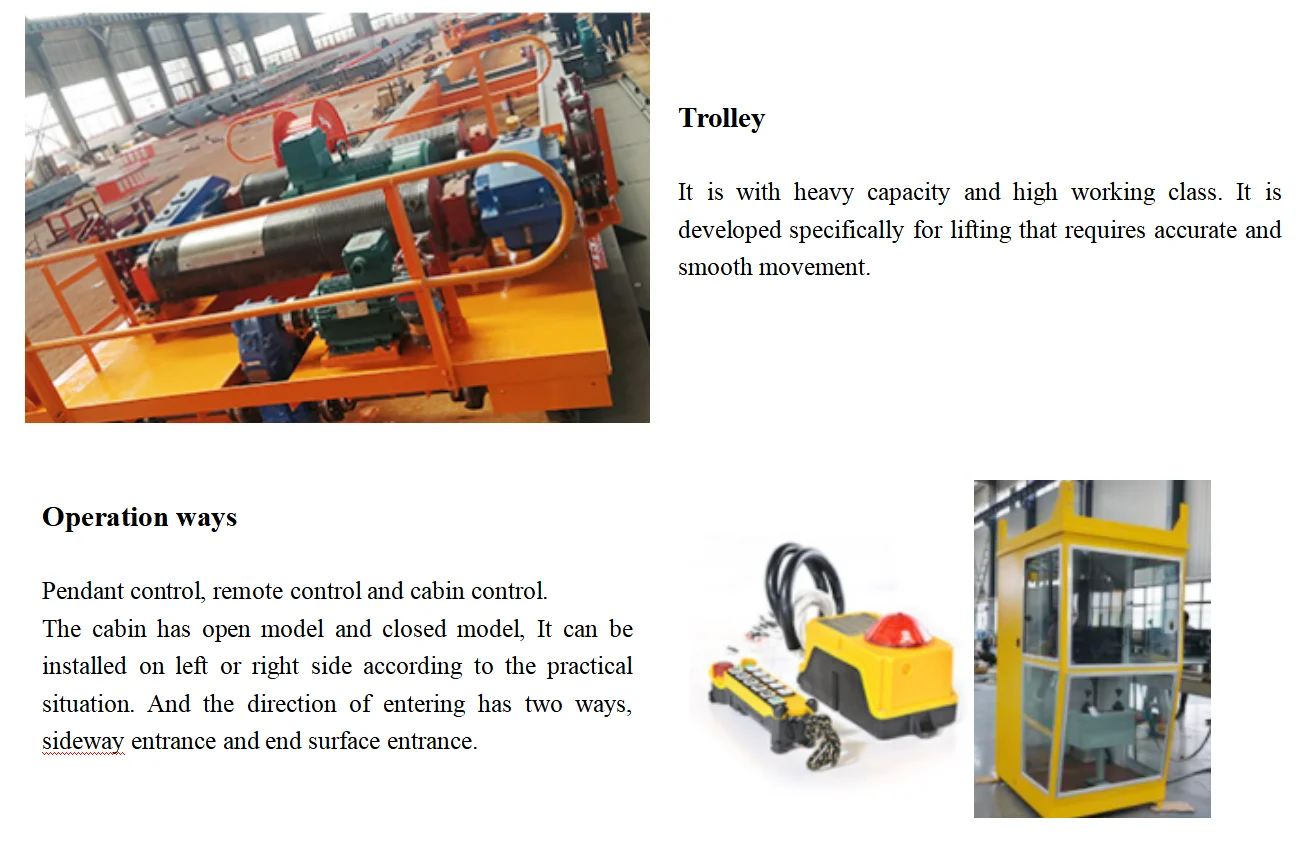

Main Parts double girder 32t lifting overhead bridge crane
Related recommendation double girder 32t lifting overhead bridge crane
Packing&Shipping
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.
