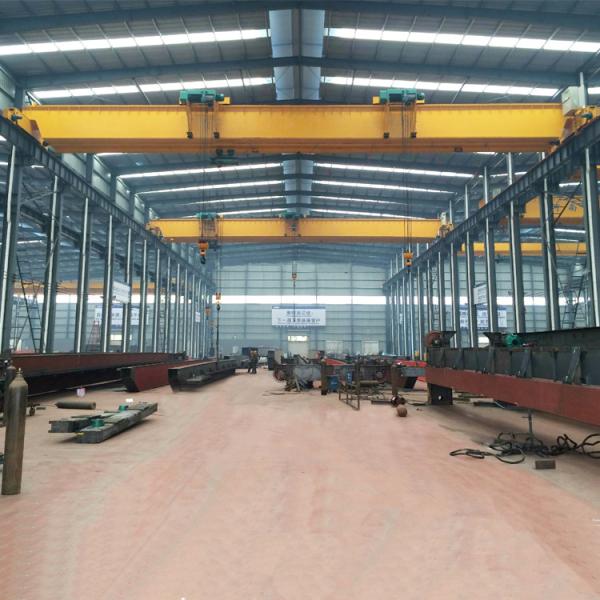

20 Ton Double Girder Overhead Bridge Crane 3 Phase Cabin Control

  • 1
  • 2

Brand Name : Dowellcrane

Model Number : LH

Certification : CE ISO SGS

Place of Origin : China (Mainland)

MOQ : 1 Set

Price : USD 30000-100000 /Set

Payment Terms : L/C, T/T

Supply Ability : 10000 Sets per Year

Delivery Time : 30 days

Packaging Details : Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.

Product name : Safety 20 ton Double Girder Overhead Bridge Crane Manufacturers

Lifting speed : 5-15M/MIN

Power Supply : Trolley running speed

Control method : cabin control/wire rope remote control

Power supply : 3 phase 380V 50hz or request

Color : customized

Condition : new

Warranty : 3 years

Contact Now

Safety 20 ton Double Girder Overhead Bridge Crane Manufacturers

  • Product description

LH type electric hoist double beam crane is traveling on fixed support, the frame adopts box-type welding mechanism, and it used together with CD1 or MD1 model wire rope electric hoist as a complete set, It is an mid-duty class crane, the capacity from 3 tons to 20 tons. The span is 10.5-31.5m. Working class is A3~A4. Working temperature is -20°to 45°centigrade.
This type crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible,explosive to corrosives environment. The control method is ground remote control or control cabin .

  • Main Advantages
  1. The structure is light, the performance is excellent, the design concept is advanced, and the space utilization rate is effectively improved.
  2. Made of high-quality steel, durable and corrosion-resistant.
  3. Complete standard configuration, stable operation, fast positioning, stable and safe operation.
  4. Simple maintenance, low installation and maintenance cost, and long service life.

  • Technical parameter of double girder overhead crane

Lifting weight(t) 10
Span(m) 10.5-31.5

Speed
(m/min)

 Hoisting 7,7/0.7
Traveling of crab 20
Traveling of trolley Surface 20(30)
Cabin 20(30)

Electric hoist

 ZD151-4/13
Lifting height(m) 9,12
Working class A3~A5
Power source 380v 50Hz three-phase
Crane rail recommended(kg/m) 38


  • Drawing of the double beam overhead crane

20 Ton Double Girder Overhead Bridge Crane 3 Phase Cabin Control

  • Safety Protections
  • Locked fall-proof reducer,
  • Outdoor hoist Can be equipped with rain cover
  • Alarm indicator lights;
  • Infrared anti-collision.

  • Details of the product
20 Ton Double Girder Overhead Bridge Crane 3 Phase Cabin Control
  • Safety Devices
  1. Weight overload protection device Weight overload protection device will warn when the lifted materials are beyond the capacity, and the displayer will show the data.
  2. Current overload protection device shall cut off the power when the current overstep the set figure.
  3. Emergency stop system shall be used to stop all motions once any emergency occurs to avoid more damage.
  4. The limit switch prevent the travelling mechanism from over travel.
  • Our Services
  1. We can discuss details and solutions with you according to your needs, and produce high-quality products suitable for you.
  2. The company has professional business staff to answer your questions online 24 hours a day.
  3. Perfect after-sales service, solve problems for you in time
  4. have a dedicated engineer to provide you with overseas guidance installation services.
